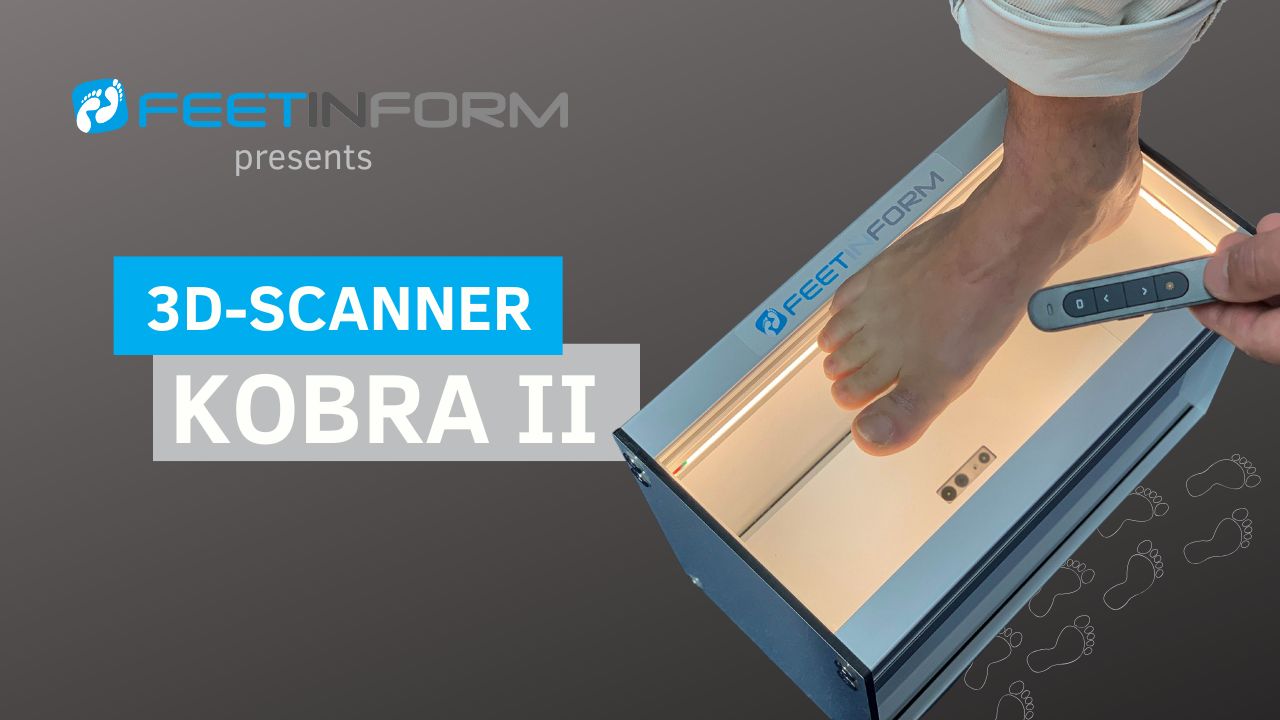

Kobra II 3D Foot Scanner – compact precision for modern foot measurement
Meet the Kobra II, the next-generation 3D foot scanner designed for precise, efficient, and mobile digital foot measurement. Capture 2D and 3D scans in seconds – whether it’s a foam impression, a shoe last, or a direct foot measurement in corrected position. Perfect for professionals in orthopedic footwear and custom insole production.
Easy to use, flexible to deploy
- Plug & Play: One USB connection is all you need – simply connect and start scanning.
- Fully integrated: The Kobra II works seamlessly with the FIF Software, so your scans go straight into the modeling process.
- Lightning-fast scans: Capture a complete 3D model in just one second.
- Corrected posture measurement: Hold the patient’s foot in the perfect position and trigger the scan via remote control – hands-on and precise.
- Lightweight & mobile: Compact, robust, and easy to transport – with an optional carrying case.
- Versatile use: Stationary in your shop, built into a pedestal, or mobile for on-site fittings. Ideal for
semi-weight-bearing scans (sitting or standing) and for scanning foam boxes or lasts.
Flexible usage according to your needs
The Kobra II foot scanner adapts to your workflow. Whether you need it built into a pedestal, freestanding in your showroom, or mobile for on-site appointments – Kobra II gives you full flexibility.

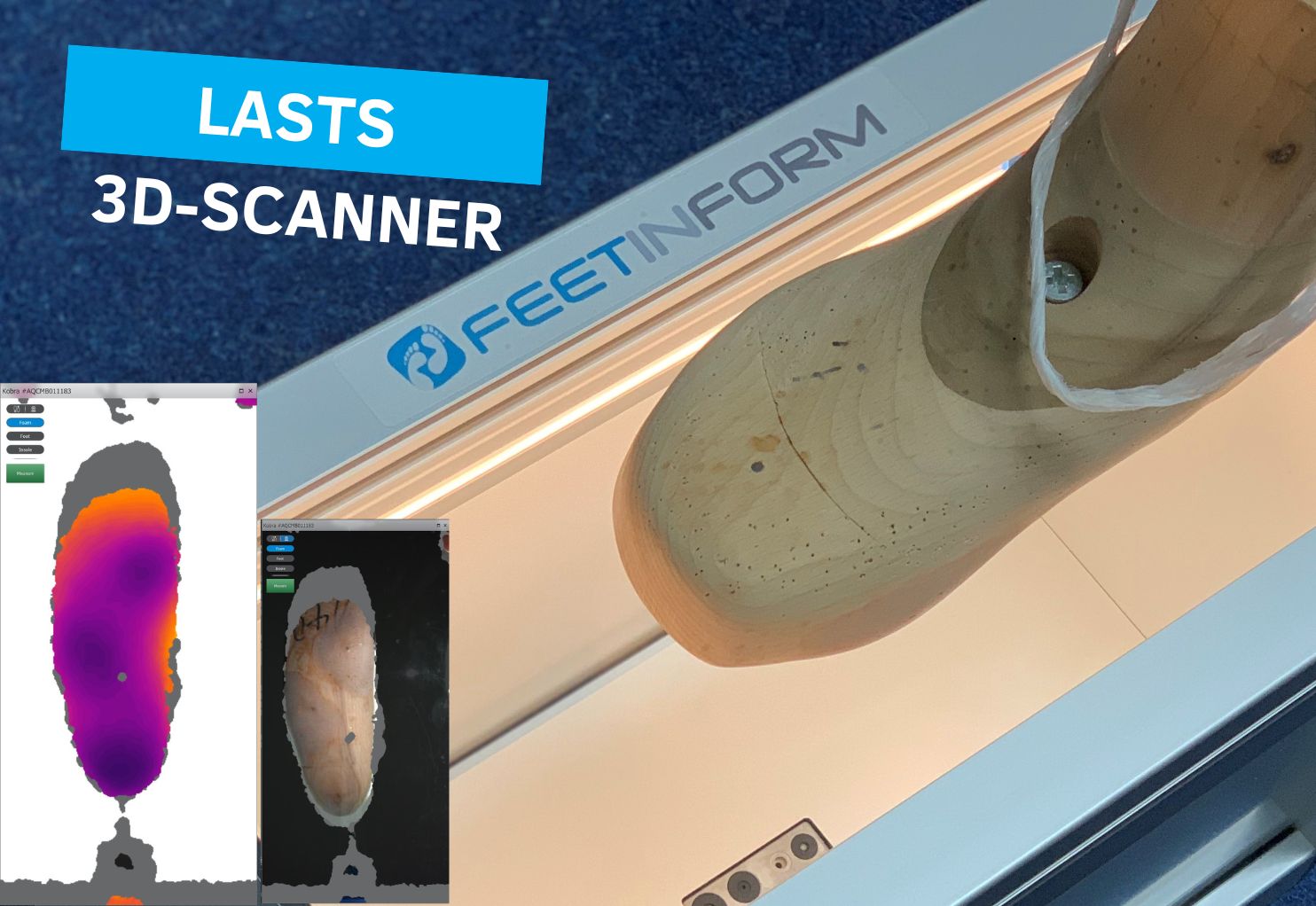

Scan lasts in 3D at the push of a button

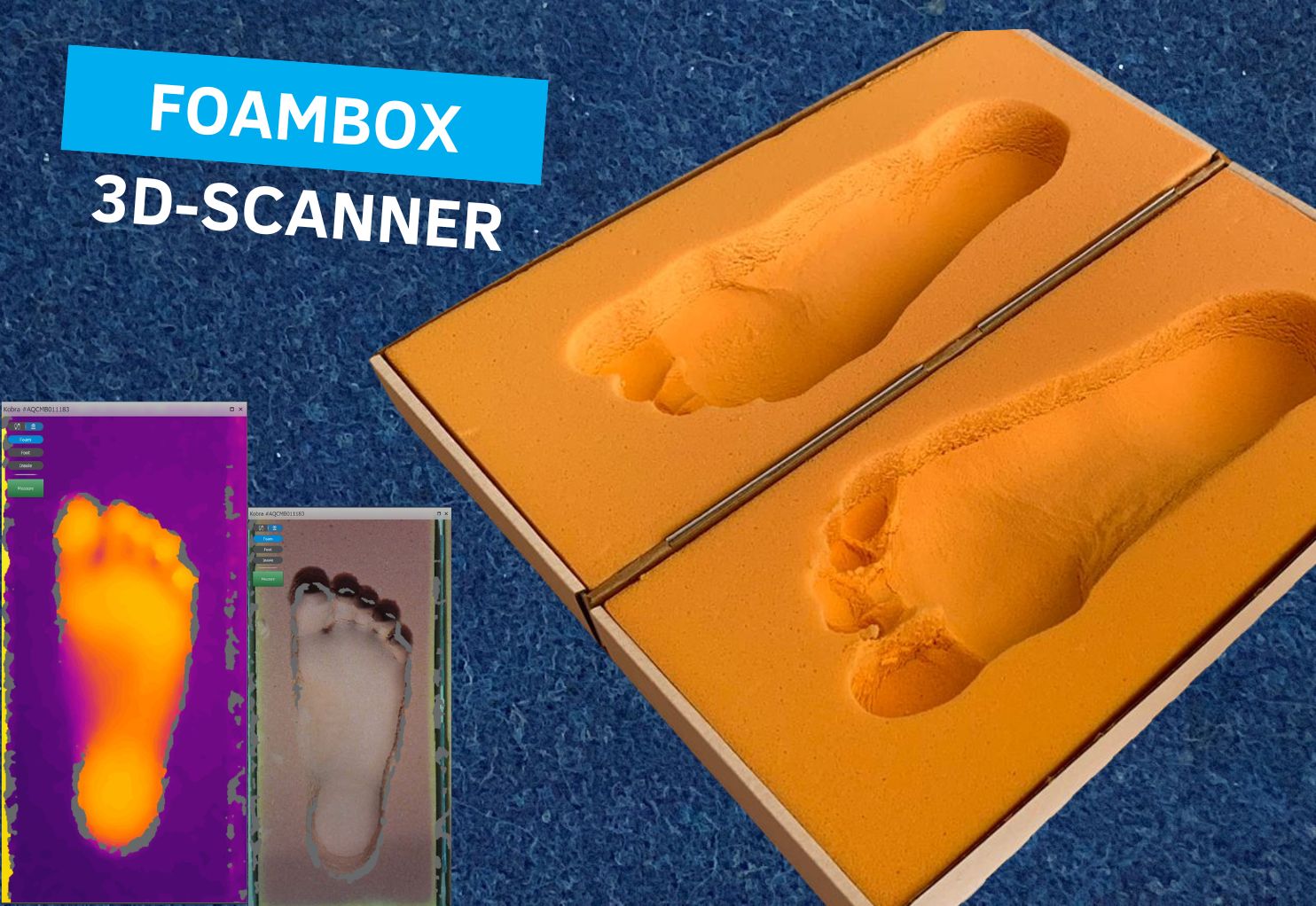

3D scan foam impressions

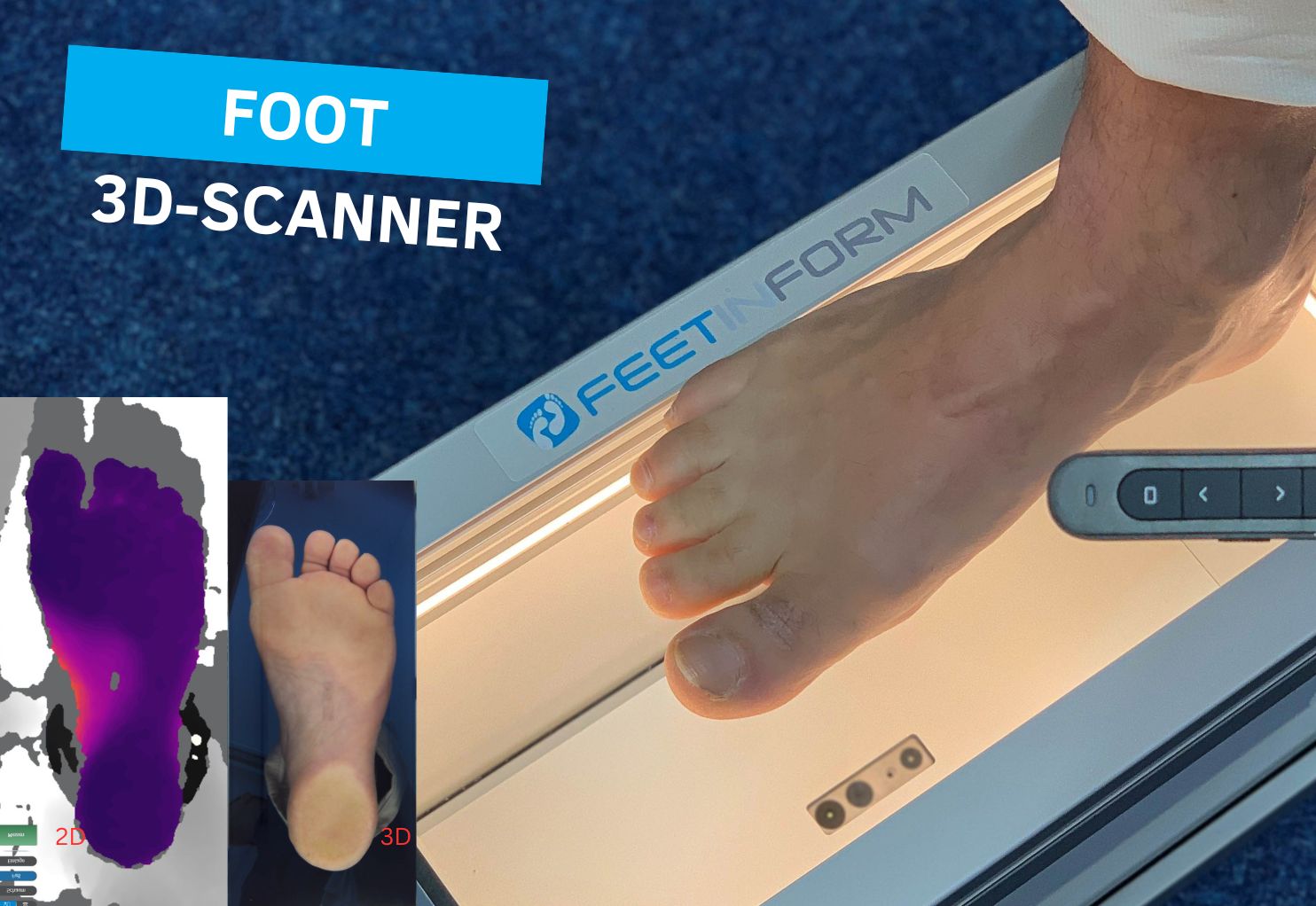

For foot measurements in corrected position, we recommend using the included remote control. This allows you to hold the patient’s foot correctly while triggering the measurement yourself or letting the patient do so. Measurements can be performed under both full and partial weight-bearing.
Seamless integration with FIF Software
The Kobra II connects directly with feetinform’s FIF Software and is instantly recognized by the system.
Seamless integration lets you proceed directly to modeling.
Automatic post-processing:
- 3D scans are automatically cleaned, smoothed, and aligned.
Flexible output options:
- 1:1 measurement printouts
- STL export for further processing in CAD programs
Optional extensions:
- CAD module for direct insole design
- Mill or Print module to start production
Technical specifications
| Property | Value |
| Housing | 320x250x40 mm |
| Weight | approx. 500 g |
| Measuring area | 330 × 150 mm (6 mm tempered safety glass) |
| Technology | Combined sensor technology with infrared 3D scanner and integrated 2D camera |
| Accuracy | 1 mm |
| Measurement time | 1 second |
| Connection | USB-Typ-A |
| Operating system | Windows 10 Pro 64-bit |
